Yamaha Snowmobile Clutch




View Cart   Empty Cart   Check Out





-Best Prices on the Net Guaranteed after shipping and handling
-Flat Rate $6.95 Same Day Shipping on Most Orders Placed before 12:00PM CST.
-Receive an additional 5% discount on orders over $300.00.
-128 Bit SSL Security Encryption and PayPal Verified for Online Ordering

FOR PRE-CALIBRATED COMPLETE CLUTCHES - CLICK HERE
For Clutch Pullers - Click Here


Application Chart
Model Engine CC Year 94C 102C 108 4-Pro 108 EXP Cam Arm Spring Color Spring #
SNO-JET (YAMAHA)
SST 440 YAMAHA 433 75   AD212600     C-2 (AD208968) YELLOW AD207888
THUNDER JET YAMAHA 433 75   AD212600     C-2 (AD208968) YELLOW AD207888
WHISPER JET YAMAHA 433 75   AD212600     C-2 (AD208968) WHITE AD203474
SST 440 YAMAHA 433 76   AD212600     F-2 (AD211333) WHITE AD203474
ASTRO 340 YAMAHA 338 77 AD211493 AD212600     F-2 (AD211333) PINK AD203473
YAMAHA
BRAVO
250T/TS
YAMAHA 246 88-01   AD208300     A-1 (AD207689) PINK AD203473
ENTICER ET 300 YAMAHA 294 79-84 AD212629 AD208301     F-2 (AD211333) PINK AD203473
ENTICER ET 340 YAMAHA 338 78-86 AD212629 AD208301     F-2 (AD211333) PINK AD203473
ENTICER ET 400 YAMAHA 400 89-95 AD212629 AD208301     F-2 (AD211333) SILVER AD204818
ENTICER 340 YAMAHA 337 88 AD212629 AD208301     A-1 (AD207689) WHITE AD203474
ENTICER ET 340T YAMAHA 338 81-86 AD212629 AD208301     F-2 (AD211333) PINK AD203473
ENTICER 340 DLX YAMAHA 338 79-80   AD208301     F-2 (AD211333) PINK AD203473
ET 410 YAMAHA 408 89-96   AD208300 AD217501 AD217501 F-2 (AD211333) SILVER AD204818
EW 643 YAMAHA 643 72-73 AD212629 AD208301     K-2 (AD213337) PINK AD203473
EX 340 YAMAHA 338 78   AD208301     F-2 (AD211333) WHITE AD203474
EX 440 YAMAHA 433 78-81 AD212629 AD208301     F-2 (AD211333) SILVER AD204818
EXCEL-III YAMAHA 338 81-86 AD212629 AD208301     F-2 (AD211333) WHITE AD203474
EXCEL-III YAMAHA 337 87-88 AD212629 AD208301     A-1 (AD207689) WHITE AD203474
EXCEL V YAMAHA 535 79-82 AD212629 AD208301     F-2 (AD211333) SILVER AD204818
EXCITER STX 340 YAMAHA 339 76   AD208301     F-2 (AD211333) WHITE AD203474
EXCITER STX 440 YAMAHA 433 76   AD208301     F-2 (AD211333) SILVER/
BLACK
AD209696
EXCITER YAMAHA 570 87-90     AD217600 AD217501 A-1 (AD207689) SILVER AD204818
EXCITER + YAMAHA 570 87-90     AD217600 AD217501 A-3 (AD208268) SILVER/
ORANGE
AD209936
EXCITER II YAMAHA 570 91-93     AD217600 AD217503 A-1 (AD207689) SILVER AD204818
HI ALT EXCITER II + YAMAHA 570 91-93     AD217600 AD217503 A-3 (AD208268) SILVER/
ORANGE
AD209936
GP 246 YAMAHA     AD213051
GP 250 YAMAHA     AD213051
GP 300 YAMAHA     AD213501
GP 440 YAMAHA 433 78   AD208301     F-2 (AD211333) SILVER AD204818
GPX YAMAHA 440 74   AD208301     F-2 (AD211333) SILVER AD204818
MTN MAX 600 YAMAHA 598 98-02     AD217600 AD217503 AC-1 (AD215242) SILVER/
RED
AD209677
MTN MAX 700 YAMAHA 698 98-02     AD217600 AD217503 AC-1 (AD215242) SILVER AD204818
PHAZER + YAMAHA 480 84-91   AD208300     C-2 (AD208968) SILVER AD204818
PHAZER YAMAHA 480 84-91   AD208300     A-1 (AD207689) SILVER/
BLACK
AD209696
PHAZER/II YAMAHA 485 92-97       AD217501 A-1 (AD207689) SILVER/
BLACK
AD209696
PHAZER 500 YAMAHA 485 99-01     AD217600 AD217503 A-1 (AD207689) SILVER/
BLACK
AD209696
PHAZER MTN LITE YAMAHA 485 00-01       AD217503 A-1 (AD207689) SILVER AD204818
SM 292 YAMAHA     AD213051
SRV (SR540) YAMAHA 535 80-91   AD208300   AD217501 A-1 (AD207689) RED AD207877
SRX 340 YAMAHA   76   AD212600     N-1 (AD209642) YELLOW AD207888
SRX 440 YAMAHA 437 76-79   AD212600   AD217501 N-1 (AD209642) YELLOW AD207888
SRX 440 YAMAHA 437 81   AD208300   AD217506 N-1 (AD209642) YELLOW AD207888
SRX 440 YAMAHA 437 80   AD208300   AD217501 N-1 (AD209642) YELLOW AD207888
SRX 600 YAMAHA 598 98-99     AD217600 AD217503 AC-1 (AD215242) SILVER/
RED
AD209677
SRX 700/MTN YAMAHA 696 98-02     AD217600 AD217503 AC (AD215218) SILVER AD204818
SS 440 YAMAHA 437 80-85   AD208300   AD217501 F-2 (AD211333) SILVER AD204818
SS 440 + YAMAHA 437 80-85       AD217501 T (AD205137) SILVER AD208418
SSR 440 YAMAHA 439 78   AD212600   AD217501 N-1 (AD209642) YELLOW AD207888
VENTURE XL/GT YAMAHA 480 91-98       AD217501 A-1 (AD207689) SILVER AD204818
VK 540 YAMAHA 480 92-99       AD217501 A-54 (AD214651) SILVER/
BLACK
AD209696
V-MAX YAMAHA 540 83-87     AD217605 AD217506 A-3 (AD208268) SILVER AD208418
V-MAX 4 YAMAHA 791 92-97     AD217605 AD217505 AC (AD215218) RED AD207877
V-MAX 500 YAMAHA 494 94-01     AD217600 AD217503 AC-1 (AD215242) SILVER AD204818
V-MAX 500 DLX YAMAHA 494 00     AD217600 AD217503 A-1 (AD207689) SILVER AD204818
V-MAX 500 SX YAMAHA 490 94-99     AD217600 AD217503 A-5 (AD212639) SILVER/
RED
AD209677
V-MAX XT/XTC YAMAHA 494 98-99     AD217600 AD217503 A-1 (AD207689) SILVER AD204818
V-MAX 600 DLX YAMAHA 598 00-02     AD217600 AD217503 AC-1 (AD215242) RED AD207877
V-MAX 600 SX YAMAHA 598 94-99     AD217600 AD217503 AC-1 (AD215242) RED AD207877
V-MAX 600 SX + YAMAHA 598 94-99     AD217600 AD217503 AC-1 (AD215242) SILVER/
RED
AD209677
V-MAX 600 XT/XTC YAMAHA 598 98-99     AD217600 AD217503 AC-1 (AD215242) SILVER/
RED
AD209677
V-MAX 700 YAMAHA 698 00-02     AD217600 AD217503 AC-1 (AD215242) PURPLE AD207756
V-MAX 700/
SX/MTN MAX
YAMAHA 698 97-01     AD217600 AD217503 AC-1 (AD215242) SILVER/
BLACK
AD209696
V-MAX 700/DLX YAMAHA 698 97-01     AD217600 AD217503 AC-1 (AD215242) SILVER AD204818
V-MAX 700
XT/XTC
YAMAHA 698 98-99     AD217600 AD217503 AC (AD215218) PURPLE AD207758
VENTURE XL YAMAHA 485 99-01     AD217600 AD217503 AC-1 (AD215242) SILVER/
RED
AD209677
VENTURE XL/GT YAMAHA 598 91-96       AD217501 A-1 (AD207689) SILVER/
BLACK
AD209696
VENTURE 600 YAMAHA 598 97-02     AD217600 AD217503 A-2 (AD208221) SILVER AD208418
VENTURE 500 YAMAHA 494 97-01     AD217600 AD217503 A-2 (AD208221) SILVER AD208418
VENTURE 700 YAMAHA 698 98-02     AD217600 AD217503 AC (AD215218) PURPLE AD207758
SX VIPER ER YAMAHA 696 01-02     AD217600 AD217503 AC-1 (AD215242) PURPLE AD207758
VK 540 III YAMAHA 540 00-02       AD217501 A-54 (AD207689) SILVER/
BLACK
AD209696
SR 540+ YAMAHA 535 80-91   AD208300 AD217501 AD217501 A-3 (AD208268) YELLOW AD207888
SRV 540+ YAMAHA 535 83-90   AD208300     A-1 (AD207689) MAUVE AD207758
SS 440+ YAMAHA 437 80-83   AD208300     T (ADA205137) SILVER AD204818
SXR 500 YAMAHA 494 00-01     AD217600 AD217503 AC-1 (AD215242) SILVER AD204818
SX 600 R YAMAHA 598 99-02     AD217600 AD217503 AC-1 (AD215242) RED AD207877
SX 700 R YAMAHA 698 00-01     AD217600 AD217503 AC-1 (AD215242) PURPLE AD207756




The Super Clutch Comet's 108 4-Pro

-The 108 4-Pro utilizes four clutch weights rather than three, greatly enhancing tuneability
-Arms can be used in sets of two to allow you to zero in on the amount of weight desired
-Captivated tower allows the shouldered cover bolts to virtually eliminate tower spreading
-Due to adding a fourth load bearing member, the roller and button life is increased
-New moveable sheave bushing, higher heat resistance extends clutch performance
*Super Performance *Super durability *Super Power *It's the latest in a long line of great clutches.
Comet has topped them all with the 108 4-Pro


Calibration- For Comet 108 4-Pro, add weight of three cam arms used in EXP or other three post clutch and divide by 4. This is the required new cam arm weight. 1997200 108 4-pro clutches differ with our 1996-97 108 4-pro in that the 1997-200 has a new moveable face rebuildable bushing kit (AD217459).
For 108 4-Pro Replacement Parts - Click Here

Models Description Item # Your Price Buy Now
Yamaha V-Max 750, 800 30mm 1:10 tapered bore; accepts 1 3/8" wide belts AD217605 374.28
After 5% discount at checkout
Quantity:

Add To Cart





108 EXP 1996-up


The best is now better, comets expanded for ... more endurance, more of everything, your need for speed! Longer lasting and economical due to longer wear.
-New, wider roller for increased bearing area. Increases durability.
-Larger diameter floating Cam Arm bolt for increased wear resistance.
-Built to handle high horsepower engines
-Continual/Consistent smooth shifting, after hours of use.
-Recessed mounting bolt for more clearance.
-All clutches are sold uncalibrated without arms and springs. Check the application guide. All arms are sold each.
To Pull any 108EXP clutch- use AD217153 clutch puller.
For Replacement Parts - Click Here


Models Description Item # Your Price Buy Now
Yamaha Phazer/SRV This clutch is for 1980 models SRX, 1980-1983 SS440, 1984-1989 Phazer & 1987-89 Exciter. Use AD217503  with F-2 Cam Arms #AD211333 and silver spring #AD204818 for 1990. Exciter . Use 102C #AD208306 for 1981/82 Yamaha "SRX". Use #AD212600 for 1976-79 "SRX". Use #AD208300 for 1990 Phazer. Clutch can be adjusted to 1 3/8" wide belt. Use C-2 Cam Arm #AD208968 and yellow spring #AD203475 for SRX. Calibrate with F-2 Arm #AD211332 and silver spring #AD204818 for SRV and SS440. See application guide for other models. May interfere with bolt heads on 1980 SRX injection pump. AD217501 266.95
Quantity:

Add To Cart

Arctic Cat/ Polaris / Yamaha Exciter/ V-Max 500-600 30mm 1:10 tapered bore, accepts 1-3/8" wide belts only. This clutch will fit all Arctic Cat models with 1 3/8" wide belts. Also fits short crank Polaris and 1990 Yamaha Exciter. Clutch can be adjusted to 1 1/4" wide belt. Calibration: See application guide. AD217503 266.95
Quantity:

Add To Cart

Yamaha V-Max / V-Max 4 Yamaha V-Max/V-Max 4. 30mm 1:10 tapered bore: accepts 1-1/4" wide belts. Limited application. This clutch fits Yamaha V-Max to 1985 and up. Calibrate for Yamaha V-Max with A-3 Cam Arms #AD208268 and Silver Spring #AD204818. See Calibration Guide for other models. AD217506 266.95
Quantity:

Add To Cart

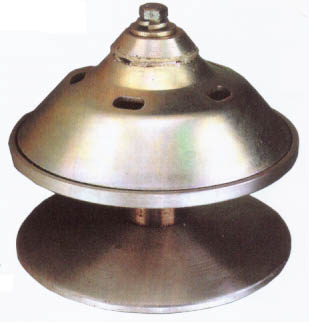

Comet 102-C High Performance Clutches

These Comet 102c Heavy duty drive clutches feature the Latest Improvements in material and design.
-They are all open clutches - no dust cover - allowing for cooler operation, ease of inspection, cleaning, and lubrication. Proven to be the best drive clutch available, light and strong. This clutch is just right for either high performance or family style trail riding - a proven winner on the track or trail.
-For the serious all-out competitor, modifying the 102C heavy duty into the hottest clutch on the snow is as simple as changing the spring, spacers and three centrifugal weights.
For replacement parts - Click Here

Models Description Item # Your Price Buy Now
Universal Clutch W/O cam arms and spring (must be purchased separately) 30mm 1:10 tapered bore, accepts 1-1/4" wide belts and is adjustable to 1-5/16". This clutch fits the majority of machines with a 30mm tapered crank. Some models of these engines makes have alternate shapes. See application guide for proper application.

***This all purpose clutch can be used on almost any machine that has a 30mm tapered crank. Use this clutc
