POWER MATCH PLUS BARS
THE INDUSTRY STANDARD FOR
PROFESSIONAL USERS CUTTING CLEAN WOOD
| PITCHES |
BODY TYPE |
NOSE TYPE |
NOSE RADIUS:
SMALL OR STANDARD |
RECOMMENDED SAW SIZES |
AVAILABLE LENGTHS |
.325"
3/8"
.404" |
SOLID |
REPLACEABLE SPROCKET NOSE |
STANDARD OR CAN BE MADE SMALL WHEN FITTED
WITH A POWER MATCH DOUBLE GUARD NOSE |
3.50 CU. IN. (58 CC) AND LARGER |
16" - 42" (40-107 CM) |
FEATURES
-Nose fastens with a single rivet, and securely held by wide,
strong, overlapping ears. -Long nose takes most of the abuse, minimizes wear
to the body. -Power Match Plus replacement noses: Fit any power
match plus bar body, Fit all three gauges: .050", .058", and .063", Come in
three pitches: .325", 3/8", or .404"
-Lubri-Dam oil-retaining feature prevents oil
from running out the bar's tail, keeps more oil on the bar and chain. -Lubri-Jet
oil holes reduce oil-hole plugging and enhance bar-chain lubrication.
-Patented Cradle nose sprocket design increases sprocket-nose life by 150% to
300%.
FOR REPLACEMENT SPROCKET NOSE - CLICK HERE
FOR
APPLICATION GUIDE AND PRICING - CLICK HERE
LASER-TIP PLUS SOLID-NOSE BARS
SOLID NOSE, SOLID BODY
BARS FOR PROFESSIONAL USERS WORKING IN DIRTY OR ABRASIVE CONDITIONS
| PITCHES |
BODY TYPE |
NOSE TYPE |
NOSE RADIUS:
SMALL OR STANDARD |
RECOMMENDED SAW SIZES |
AVAILABLE LENGTHS |
.325"
3/8"
.404" |
SOLID |
SOLID NOSE |
STANDARD |
2.3 CU. IN. (38 CC) AND LARGER |
16" - 28" (40-71 CM) |
FEATURES
- Ultra high strength stellite alloy is laser welded to the nose
for long bar life. -Lubri-Dam oil-retaining feature prevents oil from running
out the bar's tail, keeps more oil on the bar and chain. -Lubri-Jet oil holes
reduce oil-hole plugging and enhance bar-chain lubrication. -Laser welding
provides the optimum stellite bond without weakening the bar body, as can
occur with gas welding.
FOR
APPLICATION GUIDE AND PRICING - CLICK HERE
LASER-LITE SOLID-NOSE BARS
SOLID NOSE LAMINATED BARS
FOR PROFESSIONAL WOODCUTTERS WHO NEED TO BOTH SAVE MONEY AND HAVE A BAR THAT
STANDS UP TO DIRTY OR ABRASIVE CONDITIONS
| PITCHES |
BODY TYPE |
NOSE TYPE |
NOSE RADIUS:
SMALL OR STANDARD |
RECOMMENDED SAW SIZES |
AVAILABLE LENGTHS |
.325"
3/8"
.404" |
LAMINATED |
SOLID NOSE |
SOLID NOSE |
3.8 CU. IN. (62 CC) AND SMALLER |
12" - 24" (30-61 CM) |
FEATURES
- Ultra high strength stellite alloy is laser welded to the nose
for long bar life. -Lubri-Dam oil-retaining feature prevents oil from running
out the bar's tail, keeps more oil on the bar and chain. -Laser welding
provides the optimum stellite bond without weakening the bar body, as can
occur with gas welding. -Laminated construction reduces weight and cost while
maintaining excellent performance.
FOR
APPLICATION GUIDE AND PRICING - CLICK HERE
PRO-LITE BARS
SPROCKET-NOSE LAMINATED
BARS FOR FULL TIME WOODCUTTERS WHO NEED THE BEST COMBINATION OF VALUE AND
PROFESSIONAL DURABILITY FOR CUTTING CLEAN WOOD WITH SMALL TO MEDIUM SAWS
| PITCHES |
BODY TYPE |
NOSE TYPE |
NOSE RADIUS:
SMALL OR STANDARD |
RECOMMENDED SAW SIZES |
AVAILABLE LENGTHS |
.325"
3/8" |
LAMINATED |
REPLACEABLE SPROCKET NOSE |
SMALL "SLB & SLD" P/N's, STANDARD: "GLG,
GLH, SLG, & SLH" P/N's |
2.3 - 4.0 CU. IN. (38-65 CC) |
11" - 24" (26-61 CM) |
FEATURES
-Slim contour, excellent maneuverability. -Lubri-Dam oil-retaining
feature prevents oil from running out the bar's tail, keeps more oil on the
bar and chain. -Patented Cradle nose sprocket design increases sprocket-nose
life by 150% to 300%.
FOR REPLACEMENT SPROCKET NOSE - CLICK HERE
G/M HOLES (WHERE NOTED) - GUARD MATE
HOLES ARE BUILT INTO THE NOSES OF CERTAIN TYPES OF OREGON GUIDE BARS AND ALLOW
THE ATTACHMENT OF A GUARD MATE TIP GUARD TO HELP REDUCE THE RISK OF KICKBACK
FOR
APPLICATION GUIDE AND PRICING - CLICK HERE

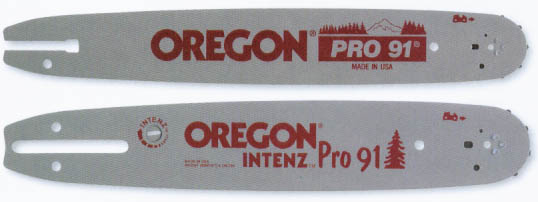

PRO 91 AND PRO 91 INTENZ BARS
THE SMALL BARS FOR
FULL-TIME WOODCUTTERS SUCH AS ARBORISTS OR TREE SURGEONS WHO PREFER USING
ULTRA-LIGHTWEIGHT SAWS AND LOW-PROFILE MINI 3/8"-PITCH "91" CHAINS
| PITCHES |
BODY TYPE |
NOSE TYPE |
NOSE RADIUS:
SMALL OR STANDARD |
RECOMMENDED SAW SIZES |
AVAILABLE LENGTHS |
| MINI 3/8" |
LAMINATED |
NON REPLACEABLE SPROCKET NOSE |
SMALL |
2.5 CU. IN. (41CC) AND SMALLER |
12" - 16" (30-40 CM) |
FEATURES
-Slim contour, excellent maneuverability. -Made from silicon -Alloy
steel for high strength and light weight -For use exclusively with "91" chains
-Lubri-Dam oil-retaining feature prevents oil from running out the bar's tail,
keeps more oil on the bar and chain. -Available in models with the Intenz
tensioning mechanism built into the bar itself.
G/M HOLES (WHERE NOTED) - GUARD MATE HOLES ARE BUILT INTO THE NOSES OF CERTAIN
TYPES OF OREGON GUIDE BARS AND ALLOW THE ATTACHMENT OF A GUARD MATE TIP GUARD
TO HELP REDUCE THE RISK OF KICKBACK
FOR
APPLICATION GUIDE AND PRICING - CLICK HERE

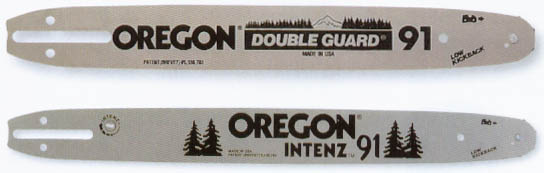

DOUBLE GUARD 91 AND DOUBLE GUARD 91
INTENZ BARS
THE BAR FOR OCCASIONAL WOODCUTTERS USING
ELECTRIC OR SMALL GAS POWERED SAWS WITH LOW KICKBACK MINI 3/8" PITCH 91VG
CHAIN
| PITCHES |
BODY TYPE |
NOSE TYPE |
NOSE RADIUS:
SMALL OR STANDARD |
RECOMMENDED SAW SIZES |
AVAILABLE LENGTHS |
| MINI 3/8" |
LAMINATED |
NON REPLACEABLE SPROCKET NOSE |
SMALL |
ELECTRIC 2.5 CU. IN. (41-58 CC) AND SMALLER |
10" - 20" (25-50 CM) |
FEATURES
-Slim symmetrical contour is light in weight, excellent
maneuverability and reversible for long life. -Lubri-Dam oil-retaining feature
prevents oil from running out the bar's tail, keeps more oil on the bar and
chain.-Small-radius nose helps reduce kickback energies. -Patented Cradle nose
sprocket design increases sprocket-nose life by 150% to 300%. -Available in models with INTENZ tensioning mechanism built into the
bar itself.
FOR
APPLICATION GUIDE AND PRICING - CLICK HERE

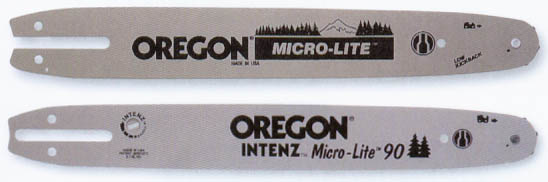

MICRO-LITE AND MICRO-LITE INTENZ BARS
IT TAKES LESS POWER FROM
THE SAWS TO MAKE THE SAME LENGTH OF CUT WITH A NARROW-KERF BAR/CHAIN CUTTING
SYSTEM THAN WITH A STANDARD BAR AND CHAIN. MICRO-LITE IS THE BAR FOR
OCCASIONAL WOODCUTTERS WHO WANT NARROW-KERF ADVANTAGES
| PITCHES |
BODY TYPE |
NOSE TYPE |
NOSE RADIUS:
SMALL OR STANDARD |
RECOMMENDED SAW SIZES |
AVAILABLE LENGTHS |
| .325" (95VP CHAIN, MLB BARS) |
LAMINATED |
NON REPLACEABLE SPROCKET NOSE |
SMALL |
2.2 - 3.5 CU. IN. (35-57 CC) |
13" - 20" (33-50 CM) |
| MINI 3/8" (90SG CHAIN, MLE BARS) |
LAMINATED |
NON REPLACEABLE SPROCKET NOSE |
SMALL |
UP TO 2.4 CU. IN. |
10" - 16" (25-41 CM) |
FEATURES
-Thickness of side laminates is reduced to work with narrow kerf
chains -Available in models with INTENZ tensioning mechanism built into the
bar itself.-Available in two gauges: .043" "MLE" bars for use with mini 3/8"
pitch 90SG chain. .050" gauge "MBL" bars for use with .325" pitch 95VP chain.
never install .043" gauge chain on a .050" gauge bar.
*Note - always
install a micro-lite chain in order to obtain all the advantages of a narrow-kerf
cutting.
FOR
APPLICATION GUIDE AND PRICING - CLICK HERE

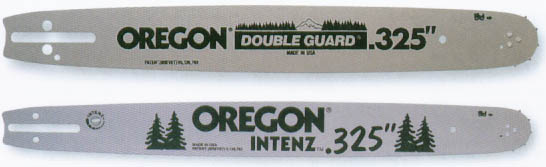

DOUBLE GUARD .325" AND
DOUBLE GUARD .325" INTENZ BARS
THE BAR FOR OCCASIONAL WOODCUTTERS USING SMALL
TO MID-SIZE SAWS WITH PROFESSIONAL-TYPE .325" PITCH CHAINS
| PITCHES |
BODY TYPE |
NOSE TYPE |
NOSE RADIUS:
SMALL OR STANDARD |
RECOMMENDED SAW SIZES |
AVAILABLE LENGTHS |
| .325" |
LAMINATED |
NON REPLACEABLE SPROCKET NOSE |
SMALL |
2.3 - 3.5 CU. IN. (38-57 CC) |
16" - 20" (40-50 CM) |
FEATURES
-Slim symmetrical contour is light in weight, excellent
maneuverability and reversible for long life. -Available in models with INTENZ tensioning mechanism built into the
bar itself. -Lubri-Dam oil-retaining feature prevents oil from running out the
bar's tail, keeps more oil on the bar and chain.-Small-radius nose helps
reduce kickback energies. -Patented Cradle nose sprocket design increases
sprocket-nose life by 150% to 300%.
FOR
APPLICATION GUIDE AND PRICING - CLICK HERE
