AMF/DYNAMARK 53716
ARIENS 305770
BOLENS 1751569
MURRAY 424285/924285/21261/24285
MTD 725-0771/725-1426/725-0530/925-1426/
925-0771
NOMA 52323
SNAPPER 1-8817
TORO 111674
*Single pole (chassis ground)
*Unique terminal post will accommodate both 5/16" and 1/4" terminal
connectors
*Unique mounting bracket will accommodate both chassis and wall mount
configurations

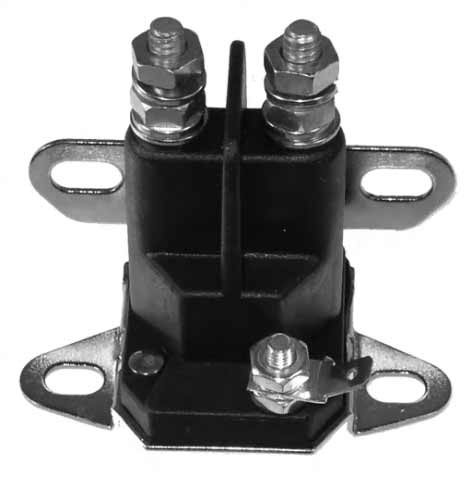

STARTER SOLENOID
* 3 pole
style, 12 volt * 5/16"-24 studs * Grounded
through base * Made
by an OEM supplier * GRAVELY 2
and 4 wheel tractors, Pro Power and ProMaster 50 models
BATTERY TESTER
*Handy pocket size and easy to use tester to check 12 volt battery and
generator systems
*Five stage display to indicate system condition
*No wire to connect
*Made in Germany
BATTERY HOLD DOWN KIT
*Universal to fit all batteries up to 8" L x 7" HT
*Nylon wing nuts resist corrosion and last longer
*Includes hold down, 2 threaded rods and 2 nylon wing nuts
BATTERY
*Fits Noma, Murray, MTD, Sears and many others
*Style 12N14-3A
*1 year pro-rated warranty, 1st 90 days full
*128 cranking amps
*Right hand positive post
*3 9/16" W x 5 3/4" L x 6 9/16" HT
*Holds 15.4 oz. of battery acid
*Battery acid not included
BATTERY
*Fits Dynamark, John Deere, MTD, Murray, Toro and many others
*Style U-1-9M, U-1-54M
*1 year pro-rated warranty, 1st 90 days full
*220 cranking amps
*Manifold type venting system for non-spill
*Left hand positive post
*5 1/8" W x 8 1/4" L x 7 1/4" HT
*Holds 35.5 oz. of battery acid
*Battery acid not included
BATTERY
MTD 753-0608/725-1430/725-1438/
725-1635
*Fits Cub Cadet 2000 series models; MTD riding mowers with 12.5 and 16 HP
engines; G50-N18L-A
*275 cranking amps
*3 1/2" W x 8 1/2" L x 6 1/2" HT
*Battery acid not included
BATTERY
*Fits Snapper riders, vent manifold in center of top
*Style U-1-R 54M, U-1-R9M
*1 year pro-rated warranty, 1st 90 days full
*220 cranking amps
*Right hand positive post
*4 7/8" W x 7 7/8" L x 7 1/2" HT
*Holds 35.5 oz. of battery acid
*Battery acid not included
BATTERY
*Fits Ariens, Case, General Power and many others
*Style 12N12A-4A-1
*1 year pro-rated warranty, 1st 90 days full
*115 cranking amps
*Left hand positive post
*3 3/16" W x 5 3/4" L x 6 3/8" HT
*Holds 14 oz. of battery acid
*Battery acid not included
BATTERY
AYP 48374/86336
*For electric start walk behind mowers
*7" lead wire length with connector
*Plastic case
*3 3/8" W x 4 1/2" L x 2 3/4" HT
*Recharge time 24-48 hours
BATTERY
TORO/WHEEL HORSE 55-7520
*For 21" electric start
*6" lead wire length with molded connector
*Plastic case
*3 1/2" W x 4 5/8" L x 2 3/4" HT
*Does not include mounting brackets for older models
*Recharge time 24-48 hours
BATTERY PACK
LAWN-BOY 682869/94-1614
*Battery pack to repair Lawn-Boy 682869
*Also will replace some Toro/battery packs
*Separate the battery box halves and replace the battery pack
*Complete with lead wires and connector
*2 5/8" W x 4" L x 2 1/2" HT
*Recharge time 24-48 hours
BATTERY CHARGER
ARIENS 01126000
LAWN-BOY 94-9164/92-1743
TORO 92-1743/94-9164
*Universal battery charger for electric start push mowers
*Replaces Ariens, Toro, Lawn-Boy and others
*Connects directly to mating battery plug
*Charger plugs into AC outlet
*Female terminal is positive
*Male terminal is negative
*Output is 14.5 volts DC
