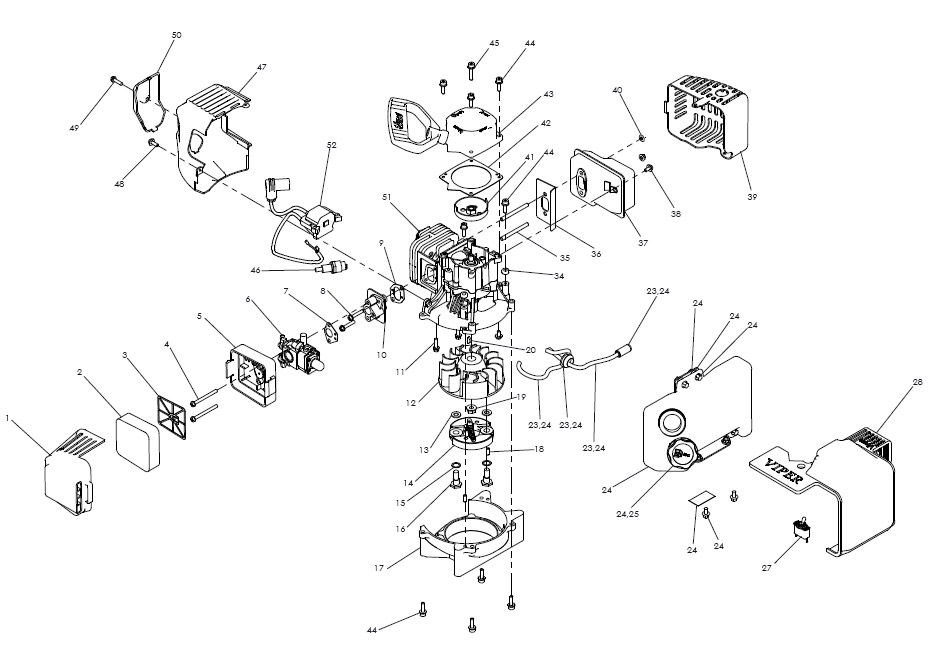

M43 Mako Engine Parts Explosion
 |
|
REF # |
Eskimo/Ardisam Part # |
Description |
Our Part # |
Your Price |
Buy Now |
| 1 |
3004161 |
Air Filter Cover, No Switch
Hole |
ARD3004161 |
$11.05
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 2 |
3004156 |
Element Air Filter Block Foam
(Viper) |
ARD3004156 |
$6.00
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 3 |
3004157 |
Frame Air Filter Reinforcement
(Viper) |
ARD3004157 |
$3.32
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 4 |
15209 |
Bolt
(M5 X 0.8 X 52 BSHCSSEMS GR8.8
ZN P-T) |
ARD15209 |
$1.67
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 5 |
3004160 |
Base Air Filter Primer Hole
Assy (2-Cycle) |
ARD3004160 |
$12.84
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 6 |
300486 |
Carburetor 43 and 51.7 CC
2-Cycle - Complete |
ARD300486 |
$32.95
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 6* |
|
Carburetor Repair Kit - Primer
Bulb Sold Separately |
RCARBKIT |
$9.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 6* |
|
Replacement Primer Bulb |
RM4388014 |
$3.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 7 |
300479 |
Carburetor Gasket
(Viper 43/51/71) |
ARD300479 |
$3.36
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 8 |
300438 |
Bolt M5 X 25MM Washer |
ARD300438 |
$1.43
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 9 |
300476 |
Intake Gasket (Viper) |
ARD300476 |
$3.36
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 10 |
300478 |
Intake Windpipe
(43/51.7CC Viper ) |
ARD300478 |
$8.20
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 11 |
300335 |
Bolt
(M5 X .8 X 20 HWH GR8.8 YL ZN F-T) |
ARD300335 |
$2.37
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 12 |
300484 / 11209 |
Flywheel
(43/51CC 2-Cycle Viper) |
ARD11209 |
$23.65
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 13 |
300462 |
Washer
(15.8 X 8.4 X 1.6MM) |
ARD300462 |
$3.42
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 14 |
300413 |
Centrifugal Clutch Rotor Assy
(Viper) |
ARD300413 |
$28.68
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 15 |
300449 |
Washer M8 Spring |
ARD300449 |
$1.24
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 16 |
300450 |
Bolt (M8 X 1.25 X 25MM
Shoulder 10MM ZN) |
ARD300450 |
$1.89
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 17 |
3004110 |
Mount Ring and Shroud
(43/51.7CC HP) |
ARD3004110 |
$21.60
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 18 |
300467 |
Pin Dowel (5MM DIA X 12 MM
LONG, STEEL) |
ARD300467 |
$1.35
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 19 |
300337 |
Nut (M8 X 1.25MM HHF) |
ARD300337 |
$1.95
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 20 |
300338 |
Flywheel Key (Viper Eng) |
ARD300338 |
$7.11
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 23 |
3004117 |
Fuel Line Kit |
ARD3004117 |
$12.91
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 24 |
12758 |
Gas Tank Kit
Comes with tank, fuel cap, brackets and fuel line kit. |
ARD12758 |
$35.28
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 25 |
11936 |
Gas Cap Kit |
ARD11936 |
$4.95
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 27 |
300524 |
Toggle Barrel Switch
(M12 X 1 TABS 5MM) |
ARD300524 |
$13.32
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 28 |
300332 |
Tank Cover
(Viper Engine) |
ARD300332 |
$12.63
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 34 |
11189 |
Spacer (M5 X 5MM) |
ARD11189 |
$1.20
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 35 |
300493 |
Stud (M6 X 62MM) |
ARD300493 |
$3.42
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 36 |
300475 |
Heat Shield Muffler Gasket
(2-Cycle Viper) |
ARD300475 |
$3.36
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 37 |
16796 |
Winter Muffler
(Viper Engine) |
NLA |
NLA |
NLA |
| 38 |
3250 |
Bolt (M5 X .8 X 12 MM PPHMS GR
8.8 ZN) |
ARD3250 |
$1.25
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 39 |
16801 / 300473 |
Muffler Cover
(Viper Engine) |
ARD300473 |
$13.44
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 40 |
300492 |
Nut (M6 X 1 HF GR 8.8 YLZN) |
ARD300492 |
$1.70
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 41 |
300491 |
Recoil Clutch Cup
(2-Cylce Viper) |
ARD300491 |
$10.95
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 42 |
300429 |
Recoil Spacer Plate
(2-Cycle) |
ARD300429 |
$3.47
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 43 |
300333 |
Recoil Assy W/ Mitten Grip
(Viper) |
ARD300333 |
$25.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 12088 / 12777 |
Hyper-Coil Assy W/ Mitten Grip
(Viper) |
ARD12777 |
$32.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 44 |
10809 |
Bolt
(M5 X 20 SHCS GR 8.8 ZN) |
ARD10809 |
$1.70
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 45 |
11169 |
Bolt
(M5 X .8 X 28MM SHCS GR 8.8 ZN) |
ARD11169 |
$2.60
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 46 |
BM6A / BMR6A |
Spark Plug |
NGKBMR6A |
$2.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 47 |
300482 |
Engine Shroud (Viper) |
ARD300482 |
$22.27
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 48 |
10887 |
Bolt (M5 X .8 X 16 PPWH GR 8.8
YL ZN F-T) |
ARD10887 |
$1.00
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 49 |
300439 |
Bolt (M5 X .8 X 20 PPWH GR 8.8
YL ZN F-T) |
ARD300439 |
$1.79
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 50 |
300483 |
Engine Shroud End Cap |
ARD300483 |
$11.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 51 |
11284 |
Engine Block |
NLA |
NLA |
NLA |
| 52 |
300469 |
Ignition Coil |
ARD300469 |
$20.80
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |

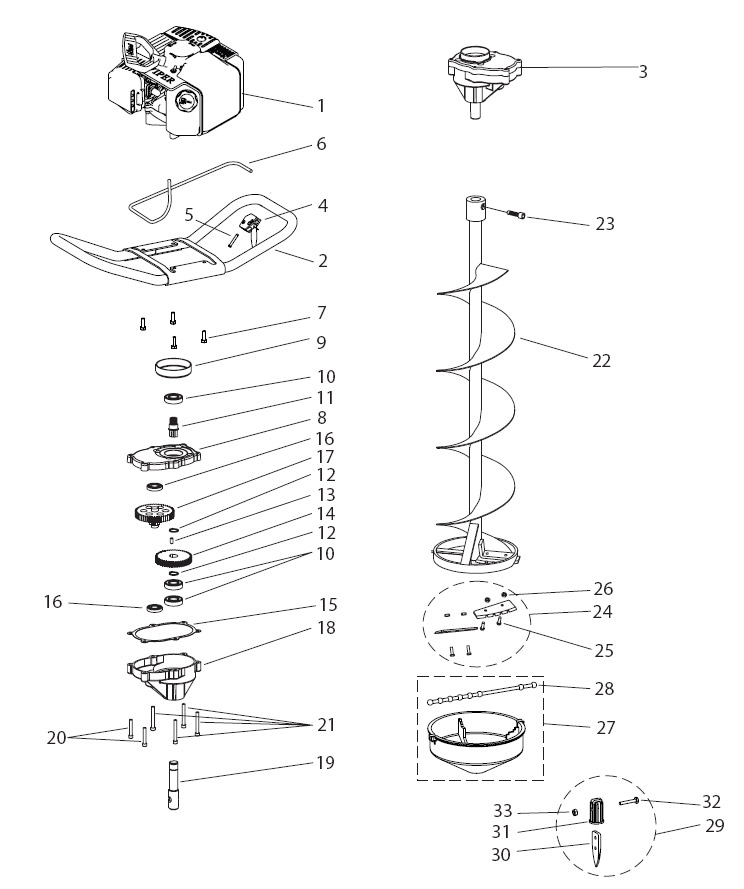

M43 Mako PowerHead and Auger Parts Explosion
 |
|
REF # |
Eskimo/Ardisam Part # |
Description |
Our Part # |
Your Price |
Buy Now |
| 1 |
11943 |
Gas Engine (43CC) |
ARD11943 |
NLA |
NLA |
| 2 |
4828 |
Threaded Handlebar |
ARD4828 |
$31.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 3 |
3004119 |
Complete Transmission |
ARD3004119 |
$129.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 4* |
4825 |
Trigger, Long Throw Kit |
ARD4825 |
$14.72
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 5* |
4825 |
Trigger, Long Throw Kit |
ARD4825 |
$14.72
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 6 |
14644 |
Throttle Cable |
ARD14644 |
$8.40
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 7 |
90148 |
Bolt (1/4-20 X 3/4 HH GR5 BLK
ZN W/PATCH) |
ARD90148 |
$6.20
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 8 |
3004111 |
Top Gear Case |
ARD3004111 |
$46.10
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 9 |
3004100 |
Clutch Drum |
ARD3004100 |
$26.62
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 10 |
8922 |
Ball Bearing
(R12 Double Lip) |
ARD8922 |
$23.40
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 11 |
9814 |
Gear 7T Pinion Threaded |
ARD9814 |
$25.13
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 12 |
8924 |
Snap Ring |
ARD8924 |
$1.52
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 13 |
8915 |
Dowel Pin
(Steel, 1/4" X 1/2") |
ARD8915 |
$1.77
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 14 |
8912 |
Gear Hole 44T 3/4" |
ARD8912 |
$30.24
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 15 |
8919 |
Gasket |
ARD8919 |
$2.08
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 16 |
8923 |
Ball Bearing R10 |
ARD8923 |
$16.84
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 17 |
9214 |
Gear 10T/48T One-Piece Cluster |
ARD9214 |
$44.67
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 18 |
8939 |
Bottom Gear Case |
ARD8939 |
$54.27
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 19 |
8913 |
Shaft Output (7/8") |
ARD8913 |
$23.65
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 20 |
8929 |
Bolt (1/4-20 X 1-1/2 SHCS) |
ARD8929 |
$1.00
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 21 |
90149 |
Bolt (1/4-20 X 2 SHCS F-T
W/PATCH) |
ARD90149 |
$1.28
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 22 |
QT8N |
Ice Auger
(8" Quantum Red) |
ARDQT8N |
$160.19
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| QT10N |
Ice Auger
(10" Quantum Red) |
ARDQT10N |
$181.72
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 23 |
8955 |
Bolt (3/8-16 X 1-1/4 SHCS) |
ARD8955 |
$1.34
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 24 |
QB8 / 28340 |
Ice Replacement Blade
(8" Quantum, Includes Nuts and Bolts) |
ARD28340 |
$30.42
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| QB10 / 28345 |
Ice Replacement Blade
(10" Quantum, Includes Nuts and Bolts) |
ARD28345 |
$34.58
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 25 |
IB5816 |
Bolt
(M5 X .8 X 16 HH) |
ARDIB5816 |
$1.00
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 26 |
IN58 |
Nut-Nyloc
(5MM X .08) |
ARDIN58 |
$1.00
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 27 |
232A |
Blade Protector Kit
(8"Quantum) |
ARD232A |
$15.85
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 233A |
Blade Protector Kit
(10"Quantum) |
ARD233A |
$20.00
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 28 |
KITBPB |
Blade Protector Bungee Kit
|
ARDKITBPB |
$7.02
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 29 |
90129 |
Replacement Ice Point |
ARD90129 |
$18.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 30 |
90166 |
Point |
ARD90166 |
$18.11
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 31 |
90165 / 90129 |
Replacement Ice Point |
ARD90129 |
$18.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 32 |
90136 |
Bolt
(10-24 X 1-1/4 HH Stainless) |
ARD90136 |
$1.44
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 33 |
53606 |
Nut (10-24 Hex Nyloc) |
ARD53606 |
$1.22
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
