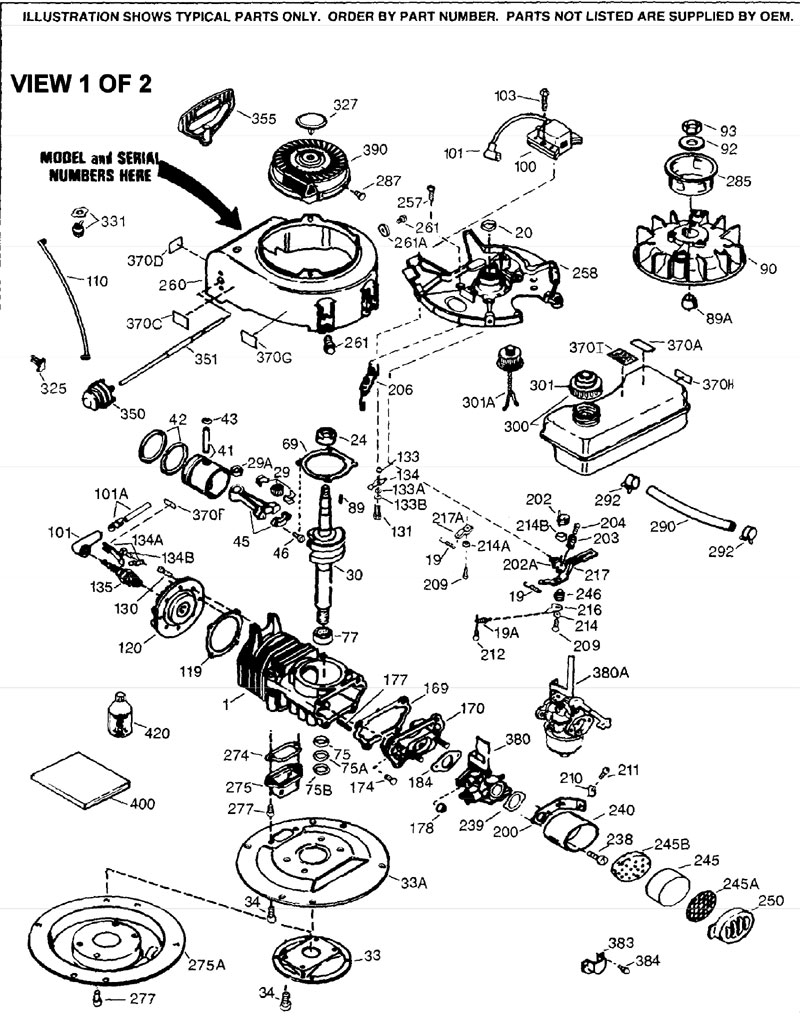

Tecumseh Model AV520-670143S Parts Breakdown



View Cart   Empty Cart   Check Out






REF # Tecumseh Part # Description Our Part # Your Price Buy Now
1 710510 / 710510A Cylinder (Order S/B if replacement is needed) TEC710510A
(Short Block)
$223.91
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

19 490286 Extension Spring TEC490286 $1.49
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

20 510319 Oil Seal TEC510319 $5.42
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

24 530110 Ball Bearing TEC530110 $21.48
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

29A 530104A Cartridge Bearing TEC530104A $11.27
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

29 530150 Needle Bearing & Liner Set (37 Needles) TEC530150 $24.77
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

30 290640 Crankshaft NLA NLA NLA
33 330171A Adapter Plate TEC330171A $10.34
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

34 650797 Screw, 5/16*18 x 1/2" TEC650797 $1.49
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

41 310283A Piston & Pin Assy TEC310283A $24.23
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

42 310284 Ring Set NLA NLA NLA
43 310167 Piston Pin Retaining Ring TEC310167 $1.25
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

45 310235B Connecting Rod Assy (Includes 29, 29A, & 46) TEC310235B $66.75
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

46 650633 Connecting Rod Bolt TEC650633 $1.47
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

69 510292A Cylinder Cover Gasket* TEC510292A $2.91
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

75 28427 Oil Seal TEC28427 $4.95
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

77 530143A Cartridge Bearing TEC530143A $13.62
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

89A 611032 Adapter Sleeve TEC611032 $6.03
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

90 611112 Flywheel TEC611112 $47.24
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

92 650815 Belleville Washer TEC650815 $1.49
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

93 650390 Flywheel Nut TEC650390 $1.49
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

100 34443B Solid State Module TEC34443D $21.55
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

103 651007 Screw, Torx T-15,
10-24 x 15/16"
TEC651007 $1.44
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

110 611174 Ground Wire TEC611174 $3.45
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

119 510274A Cylinder Head Gasket* TEC510274A $1.49
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

120 250240B Cylinder Head TEC250240B $24.27
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

130 650477 Screw, Torx T-30,
1/4-20 x 3/4"
TEC650477 $1.49
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

135 33636 Resistor Spark Plug (RJ17LM) CHPRJ17LM $2.99
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

169 510323A Cover Plate Gasket* TEC510323A $1.49
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

170 470153A Reed & Cover Plate (Includes 178) NLA NLA NLA
174 650579 Screw, Torx T-25,
10-24 x 1/2"
TEC650579 $1.47
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

178 29752 Nut and Lock Washer,
1/4-28
TEC29752 $1.49
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

184 510110A Carburetor Gasket* TEC510110A $1.49
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

203 31342 Compression Spring TEC31342 $1.45
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

204 651029 Screw, Torx T-10,
5-40 x 7/16"
TEC651029 $1.49
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

206 610973 Terminal TEC610973 $2.91
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

209 650544 Screw, Torx T-10,
 5-40 x 7-16"
TEC650544 $1.47
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

214A 570422 Washer TEC570422 $1.49
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

214 650583 Washer TEC650583 $1.49
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

216 570415 R.P.M. Adjusting Lever TEC570415 $2.91
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

217 570691 Control Lever TEC570691 $7.16
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

238 650431 Screw, Torx T-25,
 10-32 x 5/8"
TEC650431 $1.47
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

239 510206A / 35815 Air Cleaner Gasket TEC35815 $0.99
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

240 450232 Air Cleaner Body TEC450232 $7.31
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

245A 450205 Air Cleaner Filter TEC450205 $3.78
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

245B 450233 Air Cleaner Filter Screen TEC450233 $3.89
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

245 450215 Air Cleaner Filter TEC450215 $5.42
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

246 570412 Bushing TEC570412 $2.91
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

250 450216 Air Cleaner Cover TEC450216 $11.37
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

257 650911 Screw, Torx T-30,
 1/4-20 x 5/8"
TEC650911 $1.47
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

258 350448 Blower Housing Base (Includes 20) TEC350448 $32.86
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

260 350453 Blower Housing TEC350453 $29.40
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

261 650958 Screw, 1/4-20 x 7/16" TEC650958 $1.47
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

274 510257A Exhaust Gasket * TEC510257A $2.91
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

285 590551A Starter Cup TEC590551A $7.56
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

287 650926 Screw, 8-32 x 21/64" TEC650926 $0.99
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

290 29774 Fuel Line TEC29774 $2.99
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

292 26460 Fuel Line Clamp TEC26460 $0.66
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

300 410233 / 410273 Fuel Tank (Includes 301) TEC410273 $37.68
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

301 410238 Fuel Cap TEC410238 $9.28
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

350 570682 Primer Assy TEC570682 $7.80
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

351 570656 Primer Line TEC570656 $5.33
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

370K 36695 Starter Decal TEC36695 $2.00
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

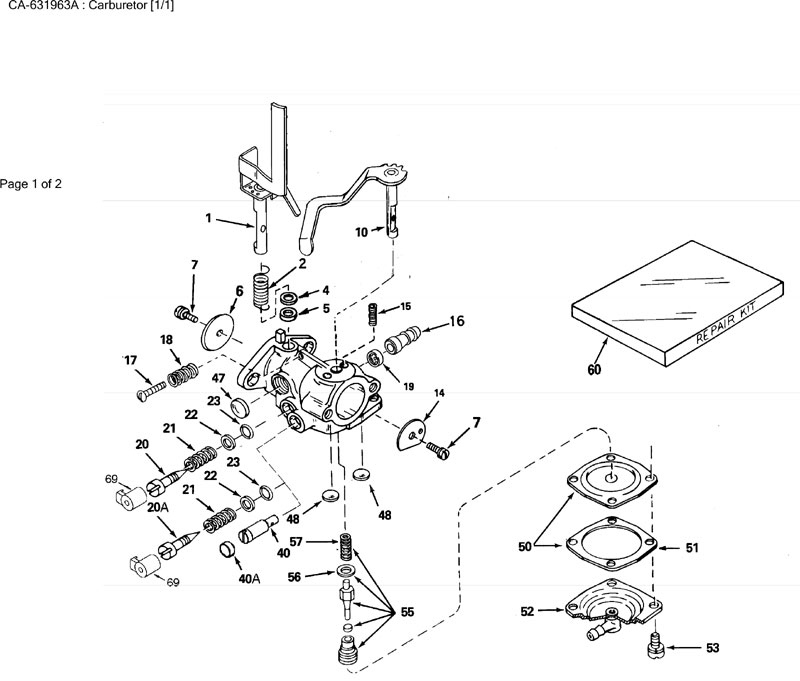

380 631301 Carburetor (Includes 184) TEC631301 $70.98
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

390 590732 Rewind Starter
(NOTE: This engine could have been built with 590738 starter. Refer to the design of the rope pulley strength ribs for part identification. Individual starter parts do not interchange.)
S150045
AFTERMARKET
$27.31
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

TEC590732A
TECUMSEH ORIGINAL EQUIPMENT
$40.37
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

400 510296C / 510296D Gasket Set *
(Incl. one of each part #'s:
510 110A, 510152A, 510245A, 510257A,51026 8A, 510270A, 510271A, 510272A,510274A , 510279A, 510281A, 510323A,510292A, 510314A)
TEC510296D $5.63
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

420 730227D 2-Cylce Oil TEC730227D $1.99
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart



REF # Tecumseh Part # Description Our Part # Your Price Buy Now

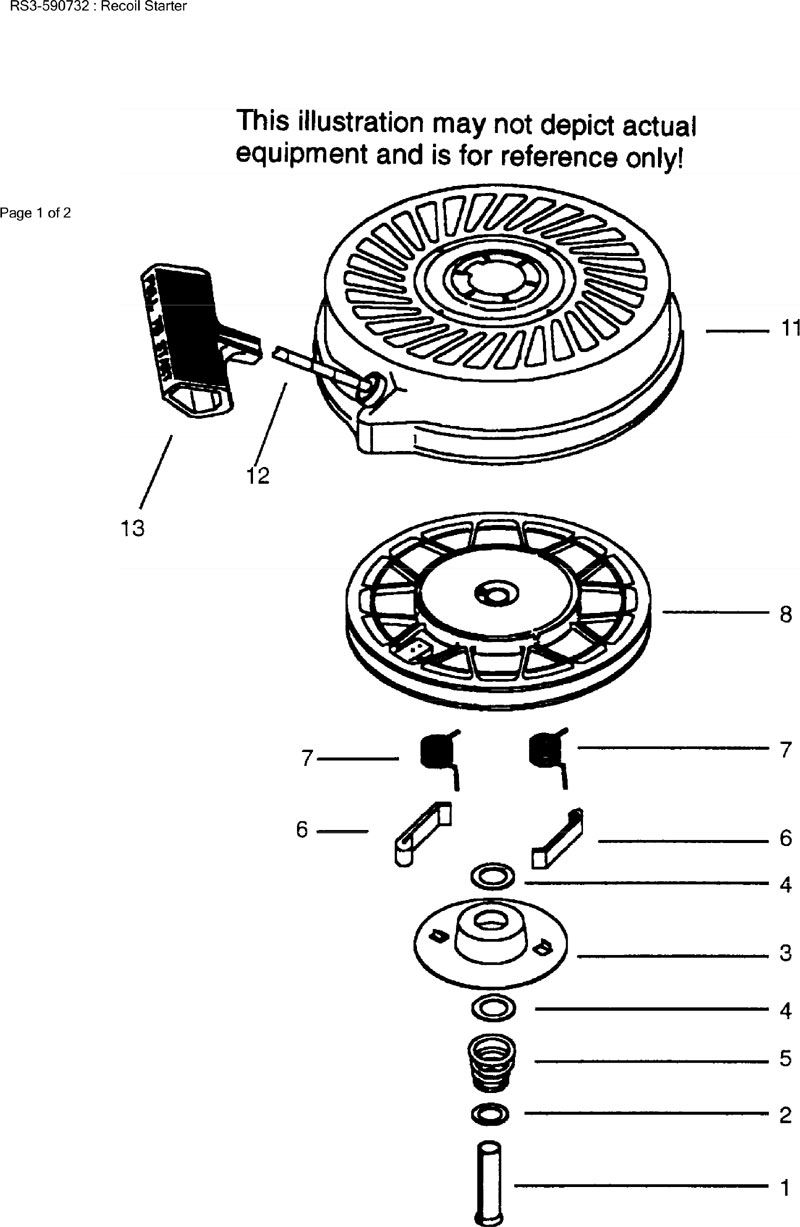

0 590732 / 590732A Rewind Starter S150045
AFTERMARKET
$27.31
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

TEC590732A
TECUMSEH ORIGINAL EQUIPMENT
$40.37
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

1 590599A Spring Pin (Incl. 4) TEC590599A $4.08
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

2 590600 Washer TEC590600 $1.49
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

3 590696 Retainer TEC590696 $5.42
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

4 590601 Washer TEC590601 $1.49
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

5 590697 Brake Spring TEC590697 $2.91
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

6 590698 Starter Dog TEC590698 $5.16
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

7 590699 Dog Spring TEC590699 $5.42
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

8 590700 Pulley and Rewind Spring Ass'y TEC590700 $18.31
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

11 590695A / 590785 Starter Housing Ass'y (40 degree grommet) TEC590785 $13.76
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

12 590535 Starter Rope (Length 98" x 9/64" dia. TEC590535 $6.83
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

13 590701 Starter Handle TEC590701 $5.16
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart



REF # Tecumseh Part # Description Our Part # Your Price Buy Now

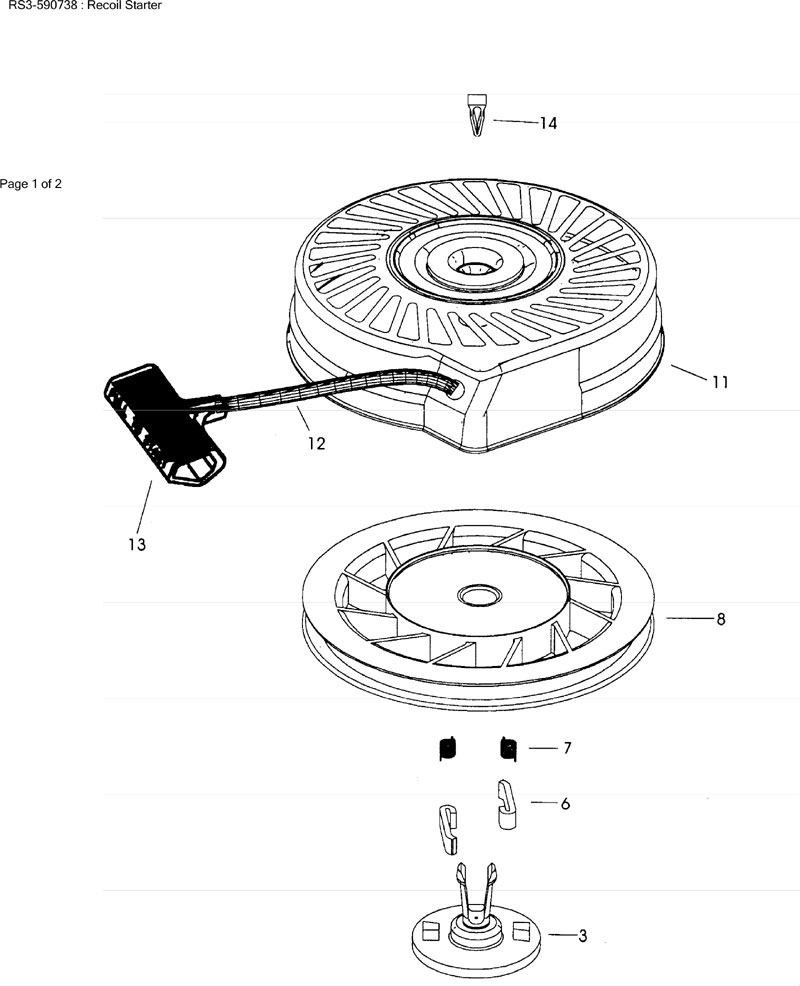

0 590738 Rewind Starter
- HAS NOW BEEN SUPERSEDED TO 590732A - FOR PARTS FOR THE 590738 SEE ITEMS BELOW
S150045
AFTERMARKET
$27.31
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

TEC590732A
TECUMSEH ORIGINAL EQUIPMENT
$40.37
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

3 590740 Retainer TEC590740 $6.90
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

6 590616 Starter Dog TEC590616 $5.49
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

7 590617 Dog Spring TEC590617 $2.99
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

8 590618A Pulley and Rewind Spring Ass'y TEC590618A $25.51
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

11 590687B Starter Housing Ass'y (40 degree grommet) TEC590687B $31.27
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

12 590535 Starter Rope (Length 98" x 9/64" dia. TEC590535 $6.83
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

13 590701 Starter Handle TEC590701 $5.16
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

14 590760 Spring Clip TEC590760 $3.39
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart



REF # Tecumseh Part # Description Our Part # Your Price Buy Now
0 631963A / 631963B Carburetor TEC631963B $77.49
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

1 631255 Throttle Shaft & Lever Assy TEC631255 $6.68
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

2 631767 Throttle Return Spring TEC631767 $1.49
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

6 631036 Throttle Shutter TEC631036 $1.47
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

7 650506 Throttle & Choke Shutter Screw TEC650506 $0.99
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

10 631315 Choke Shaft & Lever Assy TEC631315 $5.69
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

12 631184 Dust Seal Washer (Choke) TEC631184 $1.49
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

13 631183 Dust Seal (Choke) TEC631183 $1.49
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

14 630736 Choke Shutter TEC630736 $2.45
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

15 630735 Choke Positioning Spring TEC630735 $1.49
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

16 631855 Fuel Fitting TEC631855 $6.68
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

17 650417 / 651025 Idle Speed Screw TEC651025 $1.45
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

18 630766 Tension Spring TEC630766 $1.49
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

20 632102 Idle Mixture Screw TEC632102 $2.91
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

21 630738 Idle Tension Spring TEC630738 $1.49
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

22 630739 Washer, Idle Screw TEC630739 $1.49
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

23 630740 O-Ring, Idle Screw * TEC630740 $1.77
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

47 630748 Welch Plug, Idle Mixing Well * TEC630748 $1.44
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

48 630746 / 632554 Welch Plug * TEC632554 $1.44
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

50 630978 Diaphragm and Gasket Assy
 ( Incl. 51) *
TEC630978 $2.99
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

51 630750A Cover Gasket TEC630750A $2.99
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

52 631751 Cover NLA
53 650545 Cover Screws TEC650545 $1.47
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

55 630932A Needle, Seat, Gasket Assy. (Incl. 56 & 57) * TEC630932A $1.99
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

56 630742 Inlet Washer TEC630742 $1.49
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

57 631049 Inlet Spring TEC631049 $1.47
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

60 631893 / 631893A Repair Kit
(Includes parts marked
with * )
RM80-31-073
AFTERMARKET
$7.09
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

TEC631893A
ORIGINAL EQUIPMENT
SPECIAL PRICE $7.49 EACH
WAS $10.65
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart
