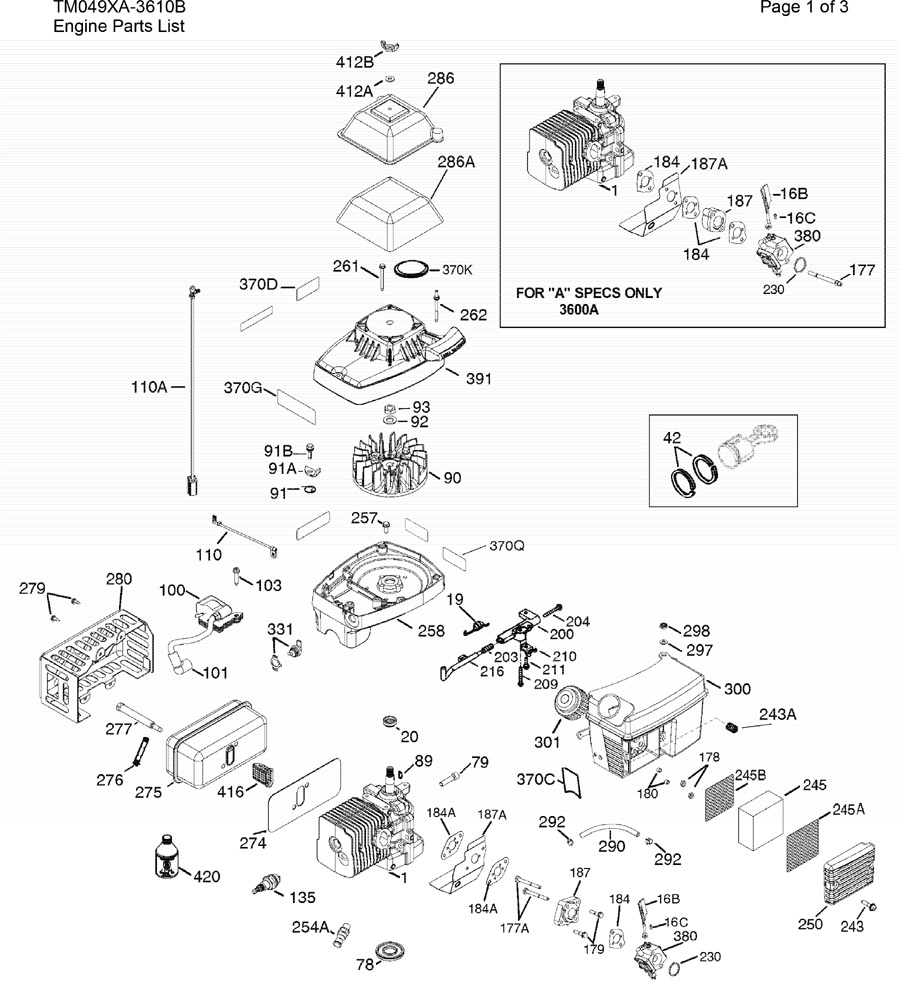

Tecumseh Model TM049XA-3610B Parts Breakdown



View Cart   Empty Cart   Check Out




REF # Tecumseh Part # Description Our Part # Your Price Buy Now
1   Cylinder NLA NLA NLA
16B 490324 Air Vane TEC490324 $2.91
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

16C 650986 Screw, T-8, 3-48 x 7/32" TEC650986 $1.47
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

19 570717 Governor Spring TEC570717 $2.91
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

20 510354 Oil Seal TEC510354 $2.94
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

42 310292 Piston Ring TEC310292 $9.21
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

78 510355 Oil Seal TEC510355 $2.94
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

79 651107 Screw TEC651107 $1.45
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

89 611054 Flywheel Key TEC611054 $1.47
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

90 611180 Flywheel TEC611180 $52.78
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

91B 650985 / 590779 Pawl Spring
- Supersedes to
Starter Repair Kit
- includes Spring, Pulley, Pawls and Pawl Springs.
TEC590779
Starter Repair Kit
$15.11
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

91 590691 / 590779 Pawl Spring
- Supersedes to
Starter Repair Kit
- includes Spring, Pulley, Pawls and Pawl Springs.
TEC590779
Starter Repair Kit
$15.11
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

91A 590692 / 590779 Starter Pawl
- Supersedes to
Starter Repair Kit
- includes Spring, Pulley, Pawls and Pawl Springs.
TEC590779
Starter Repair Kit
$15.11
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

92 650848 Belleville Washer TEC650848 $1.40
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

93 650849 Flywheel Nut, 3/8-24 TEC650849 $1.47
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

100 611056 Solid State Ignition TEC611056 $48.71
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

101 610118 Spark Plug Cover TEC610118 $1.42
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

103 651007 Screw, T-15, 10-24 x 15/16" TEC651007 $1.44
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

110 611138 Ground Wire TEC611138 $2.88
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

135 611100 Spark Plug (RCJ6Y) CHPRCJ6Y $2.95
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

177A 651109 Carburetor Mounting Stud TEC651109 $1.47
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

178 650580 Lock Nut, 10-24 TEC650580 $0.99
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

179 651108 Screw TEC651108 $1.44
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

180 651110 Fuel Tank Spacer TEC651110 $1.49
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

184A 510356 Carburetor Gasket TEC510356 $2.91
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

184 510353 Carburetor Gasket TEC510351 $1.47
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

187 570726 Spacer TEC570726 $6.29
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

187A 570727 Air Baffle TEC570727 $2.64
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

200 570700 Speed Control Body TEC570700 $4.05
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

203 570701 Control Spring TEC570701 $1.47
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

204 651042 Screw, T-15, 8-32 x 1" TEC651042 $1.47
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

209 651042 Screw, T-15, 8-32 x 1" TEC651042 $1.47
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

210 27793 Conduit Clip TEC27793 $1.49
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

211 651047 Screw, T-15, 10-24 x 21/32" TEC651047 $1.47
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

216 570712 R.P.M. Adjusting Lever TEC570712 $2.99
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

230 570649A O-Ring TEC570649A $1.47
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

243 650955 Screw, 10-32 x 29/32" TEC650955 $2.99
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

245 450252 Air Filter TEC450252 $2.50
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

245A 450255 Air Filter TEC450255 $5.01
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

250 450253 Air Cleaner Cover TEC450253 $7.95
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

254A 570725 Compression Release Valve TEC570725 $11.44
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

257 650867 Screw, 10-24 x 1/2" TEC650867 $1.49
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

258 350464 House Base (Mach) TEC350464 $26.80
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

261 650850 Screw, 8-32 x 1-9/16" TEC650850 $1.44
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

262 650939 Stud TEC650939 $1.44
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

274 510352 Exhaust Gasket TEC510352 $3.35
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

275 391031 Muffler TEC391031 $13.44
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

277 651106 Shoulder Screw TEC651106 $1.99
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

279 651001 Screw, 8-32 x 25/64" TEC651001 $1.47
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

290 410246A Fuel Line TEC410246A $4.05
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

292 410253 Fuel Clamp TEC410253 $1.44
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

297 27261 Washer TEC27261 $1.49
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

298 650954 Lock Nut, 8-32 TEC650954 $1.47
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

300 410284 Fuel Tank
(Incl. 290,292,298,301 &370C
TEC410284 $41.04
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

301 410285 Fuel Cap TEC410285 $14.21
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

331 651650 / 610650B / 651650C Switch, Toggle TEC610650C $12.09
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

370D 35977 Warning Decal TEC35977 $2.00
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

370G 550252 Instruction Decal TEC550252 $2.34
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

370K 36695 Starter Decal TEC36695 $2.00
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

370Q 550250 Emissions Decal TEC550250 $2.34
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

370C 550239 Choke Decal TEC550239 $2.00
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

380 640347 / 640347A Carburetor (Incl. 184) O50-667
Aftermarket by
Oregon Power Equipment, part # 50-667, comes with mounting gasket and 1 year warranty. Will only work if Air Vane Mounts on Throttle Shaft. If different then use Original Equipment Carburetor Only.
$27.64
& only $7.95 flat rate shipping per whole order
Quantity:

Add To Cart

TEC640347A
TECUMSEH ORIGINAL EQUIPMENT CARBURETOR - INCLUDES MOUNTING GASKET
$60.93
& only $7.95 flat rate shipping per whole order
Quantity:

Add To Cart

TILRK-18HU
ORIGINAL EQUIPMENT REPAIR KIT WILL NOT FIT NEWER 640347A CARBRETORS MADE BY ZAMA
$7.88
& only $7.95 flat rate shipping per whole order
Quantity:

Add To Cart

391 590769
590780
Recoil and Housing Assy TEC590780 $52.78
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

416 390301A Spark Arrestor Kit
 (Incl. 370V)
TEC390301A $13.22
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

420 730227D 2-Cycle Oil (8 oz) TEC730227D $1.99
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart



REF # Tecumseh Part # Description Our Part # Your Price Buy Now
0 590769
590780
Rewind Starter and Housing Assy TEC590780 $52.78
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

1 650987 Retainer Screw,
 10-24 x 1-3/8"
TEC650987 $1.47
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

3 650985 Pawl Spring
- Supersedes to
Starter Repair Kit
- includes Spring, Pulley, Pawls and Pawl Springs.
TEC590779
Starter Repair Kit
$15.11
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

4 650147 Flat Washer TEC650147 $1.49
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

5 590691 / 590779 Pawl Spring
- Supersedes to
Starter Repair Kit
- includes Spring, Pulley, Pawls and Pawl Springs.
TEC590779
Starter Repair Kit
$15.11
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

6 590692 / 590779 Starter Pawl
- Supersedes to
Starter Repair Kit
- includes Spring, Pulley, Pawls and Pawl Springs.
TEC590779
Starter Repair Kit
$15.11
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

8 590693 / 590779 Starter Pulley
- Supersedes to
Starter Repair Kit
- includes Spring, Pulley, Pawls and Pawl Springs.
TEC590779
Starter Repair Kit
$15.11
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

9 590562 Rewind Spring TEC590777 $7.14
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

12 590639 Starter Rope (70.5") TEC590639A $4.68
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

13 590701 Starter Handle TEC590701 $5.16
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart



REF # Tecumseh Part # Description Our Part # Your Price Buy Now

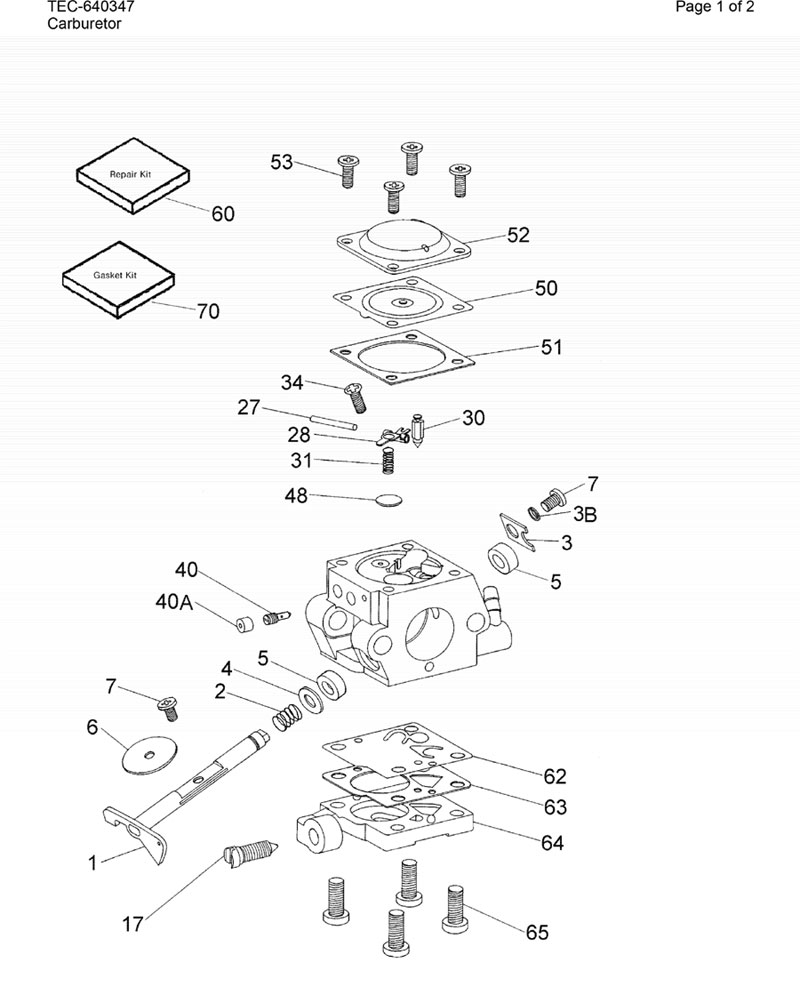

0 640347 / 640347A Carburetor (Incl. 184  of Engine Parts List) O50-660
OREGON AFTERMARKET CARBURETOR - INCLUDES MOUNTING GASKET
$24.48
& only $7.95 flat rate shipping per whole order
Quantity:

Add To Cart

TEC640347A
TECUMSEH ORIGINAL EQUIPMENT CARBURETOR - INCLUDES MOUNTING GASKET
$60.93
& only $7.95 flat rate shipping per whole order
Quantity:

Add To Cart

TILRK-18HU
ORIGINAL EQUIPMENT REPAIR KIT WILL NOT FIT 640347A CARBURETORS MADE BY ZAMA
$7.88
& only $7.95 flat rate shipping per whole order
Quantity:

Add To Cart

1 640232 Throttle Shaft & Lever Assy TEC640232 $8.13
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

2 640233 Throttle Return Spring TEC640233 $1.20
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

3 640234 Dust Seal Retainer TEC640234 $1.37
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

3B 640236 Spacer TEC640236 $0.84
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

4 640237 Dust Seal Washer TEC640237 $1.44
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

5 640238 Dust Seal TEC640238 $2.69
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

6 640239 Throttle Shutter TEC640239 $1.44
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

7 640235 Screw, Throttle Shutter & Dust Seal Retainer TEC640235 $1.40
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

17 640240 Idle Speed Screw TEC640240 $5.10
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

27 640241 Hinge Pin TEC640241 $1.33
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

28 640242 Metering Lever  * TEC640242 $2.72
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

30 640243 / 632918 Inlet Needle * TEC632918 $7.86
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

31 264244 Metering Lever Spring TEC640244 $1.47
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

34 640245 Screw, Metering Lever Pin TEC640245 $1.44
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

40 640246 High Speed Jet NLA NLA NLA
40A 640247 High Speed Jet Sealer Cap NLA NLA NLA
48 640348 Welch Plug * TEC640348 $1.49
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

50 640248 Diaphragm TEC640248 $7.77
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

51 640249 Cover Gasket TEC640249 $1.47
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

52 640250 Cover TEC640250 $1.44
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

53 640251 Cover Screw TEC640251 NLA NLA
60 640256 / RK-18HU Repair Kit (Includes items marked * ) TILRK-18HU $7.88
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

62 640252 Pump Diaphragm TEC640252 $4.05
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

63 640253 Pump Gasket TEC640253 $3.42
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

64 640255 Pump cover TEC640255 $1.49
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

65 640254 Pump Cover Screw TEC640254 $1.47
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart

70 TECUMSEH 640257
TILLOTSON DG-4HU
Gasket Set (Includes #640248, 640249,
 640252, & 640253)
TILDG-4HU $6.04
& ONLY $7.95 FLAT RATE SHIPPING PER WHOLE ORDER
Quantity:

Add To Cart
